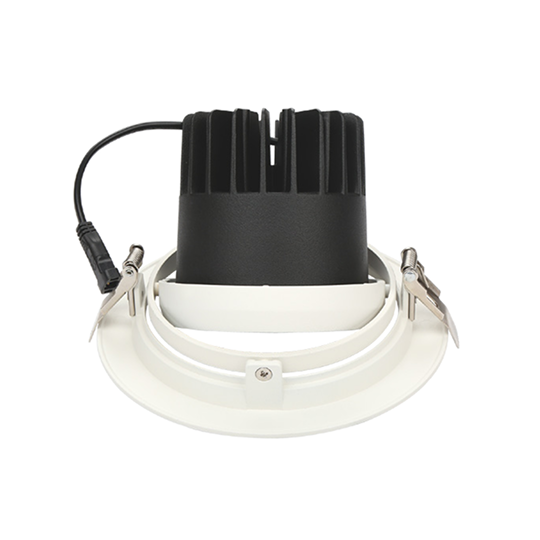

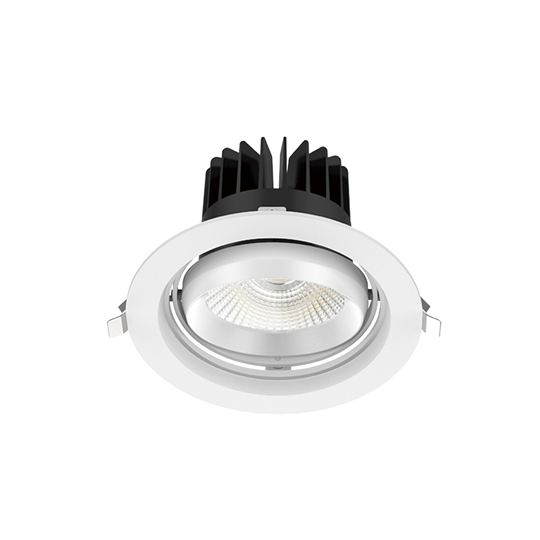

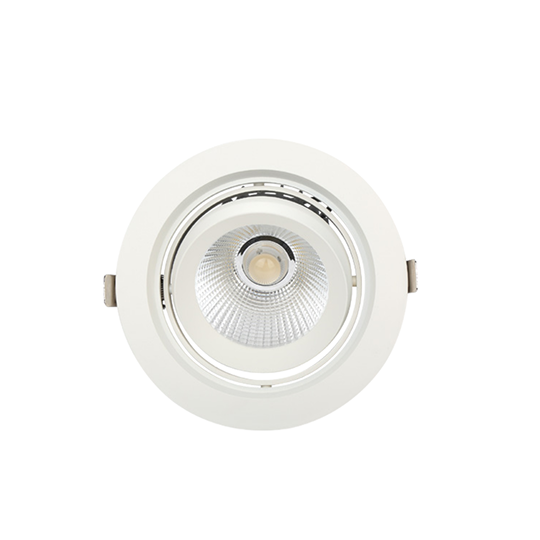

CL113 is a recessed commercial down light which can achieve modular splicing, It adopts brand COB chip and high reflective rate reflector ; ADC12 Aluminum heat sink with multiple layers provides excellent thermal management; the module can be adjusted from any directions to 30 degrees, practical for accent lighting and decorative lighting.
Features
1. Modular splicing.
2. Triac dimming, 0-10V dim, DALI dim both available.
3. Reflector beam angle changeable.
4. Module lighting directions adjusted to 30 degrees in any orientations.
5. Choice of 2700K, 3000K, 4000K, 5000K CCT.
6. Lifetime exceeds 50,000 hrs.
Application Areas
It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| CODE | F690R |
|---|---|
| OPTIC | 15° / 24° / 36° |
| LUMENS | 2500-2750 |
| WATTAGE | 25W |
| LUMENS/W | 100LM/W |
| COLOR | WHITE |
| IP RATING | IP20 |
| CCT | 2700K/3000K/4000K/5000K |
| CRI | 80 |
| CONTROL | ON-OFF / DALI |
| SIZE | Ø180*110 |
