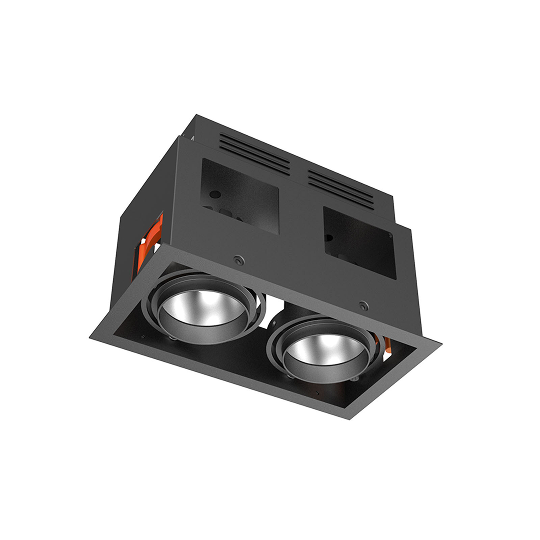

TEOS DOWNLIGHTS SERIES – T271

Up-shine rectangular LED grille downlight is unique designed with COB high power LED chip.
High efficient reflector with COB LED provides high lumen output and wide beam angle. Single head, double head and triple head provided for wide choice. Adjustable lighting direction offers various lighting orientation.

Details

Features

●Up to 70% energy saving compared to
standard CFL
●Long lifetime of 40,000 hours
●24° wide beam angle
●L165*W85mm cutout
● CCT: 2700K 3000K
4000K 5000K
●Adjustable and rotary
●No UV/IR light
● Environment friendly, without Mercury or any
other hazardous substances

Application notes

IP20 for indoor use only
● Professional electrician for installation only
● Switch off before installation
● Do not touch when in use
● Keep away from hot steam and corrosive gas

Application Areas

It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.

Show More Show Less

Additional information

CODE	T271
OPTIC	24°
LUMENS	1040-1250lm
WATTAGE	16W
LUMENS/W	70LM/W
COLOR	WHITE
IP RATING	IP20
CCT	2700K/3000K/4000K/5000K
CRI	80
CONTROL	ON-OFF / DALI
SIZE	L180W100H135mm
