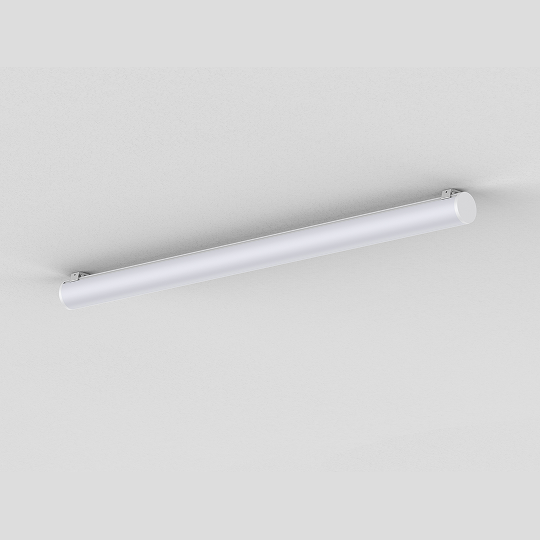

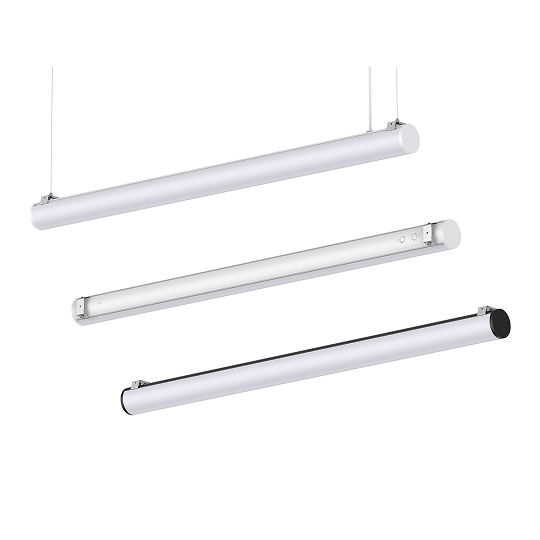

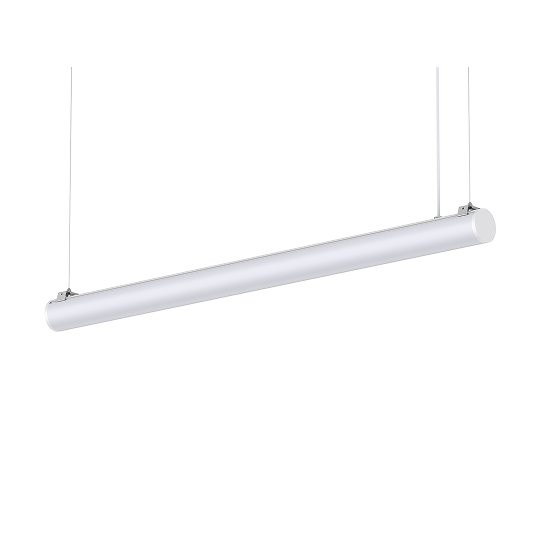

This is a cylinder shape batten light with 200 degree lighting surface. It mainly adopts PC lampshade for big lighting surface for uniform light output. 600mm/1200mm/1800mm standard size optional, it also supports to cut different sizes. What’s more, to meet more application areas, it can do microwave sensor, emergency, triac, 0-10V, DALI dim, and available for splicing, surface mount, wall mount, pendant installation.
Features
– Wide emitting angle with 200 degree

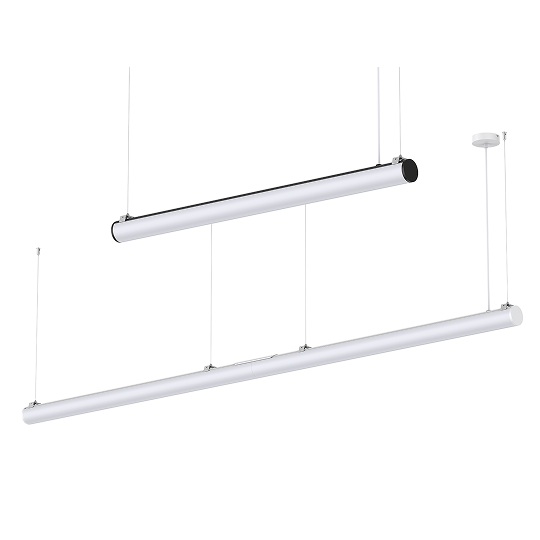

– Easy splicing way for multiple lamps
– Interchangeable CCT(3000K+4000K+5700K) with DIP switch
– High lumen efficiency,120lm/W for energy saving
– Functions: Microwave sensor, Emergency
– Flexible mounting ways: surface mount/ wall mount/ pendant/ splicing
– Dimming ways: Triac, 0-10V, DALI
– Internal flicker free driver
Application Areas
It is widely used in office, meeting room, museum, workshop, supermarket, warehouse etc.
| CODE | A493 |
|---|---|
| OPTIC | 200° |
| LUMENS | 4900-5100lm |
| WATTAGE | 40W |
| LUMENS/W | 120LM/W |
| COLOR | WHITE |
| IP RATING | IP40 |
| CCT | 3000K/4000K/5000K/5700K |
| CRI | 80 |
| CONTROL | ON-OFF / DALI |
| SIZE | Ø72*L1200 |
