SPEOS LINEAR BATTEN LIGHT – S675

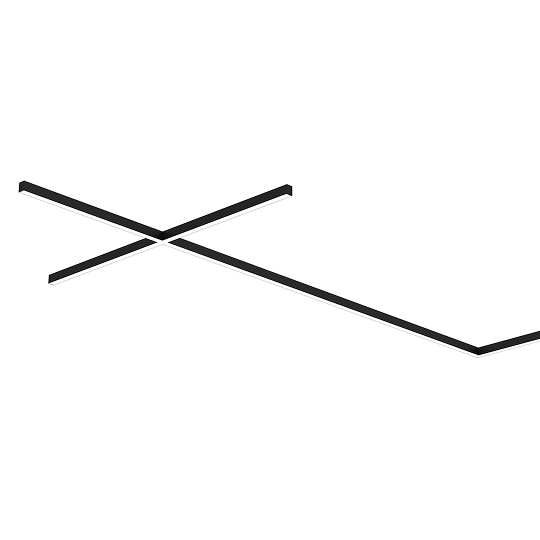

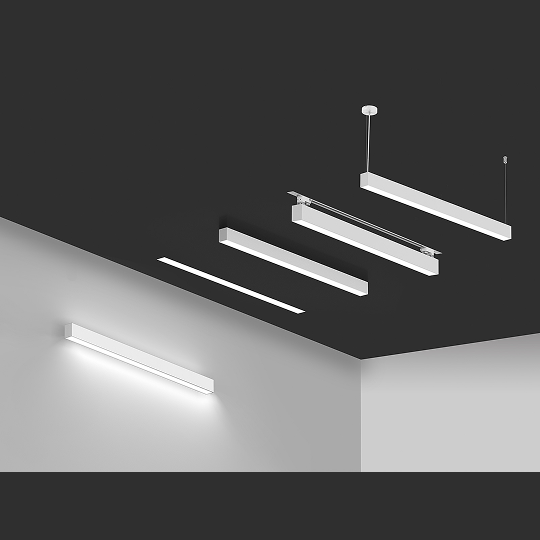

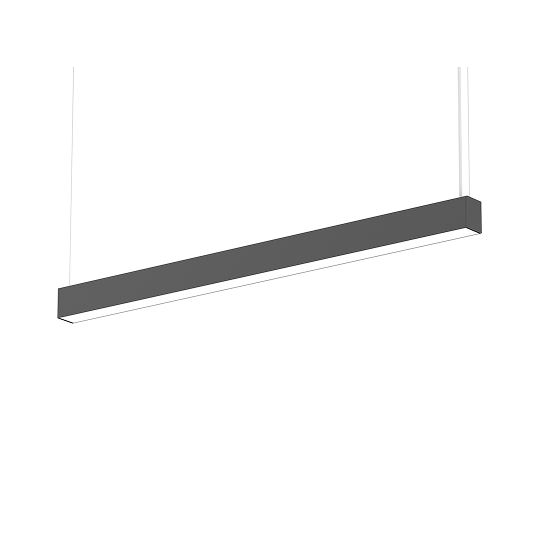

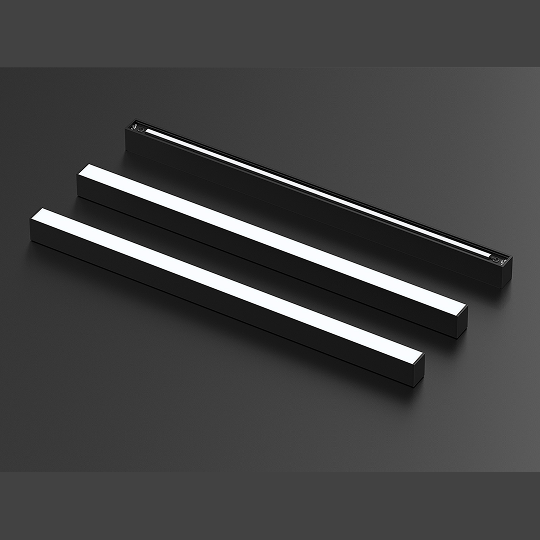

This linear fixture is a seamless splicing design, Adopt high lumen SMD light source, flicker free and high efficiency driver make a better lumen. Aluminum housing provides an excellent thermal management. Functions: Down lighting, up&down lighting, adjustable CCT, emergency and sensor. Mounting design: Pendant/surface mounted/wall mounted/recessed/Track. Modular design: Replaceable driver and emergency module.

Details

SPEOS LINEAR BATTEN LIGHT

CODE	OPTIC	LUMENS	WATTAGE	LUMENS/W	CCT	IP RATING	CRI	CONTROL	SIZE
S670	110°	1500-1650lm	17W	90LM/W	3000K/4000K/5000K/5700K	IP20	80	ON-OFF / DALI	6025776
S671	110°	3350-3750lm	36W	90LM/W	3000K/4000K/5000K/5700K	IP20	80	ON-OFF / DALI	12125776
S672	110°	4000-4700lm	45W	90LM/W	3000K/4000K/5000K/5700K	IP20	80	ON-OFF / DALI	15125776

Up & Down Linear Batten Light

S673	UP 110° DOWN 110°	2000-2200lm	22W	90LM/W	3000K/4000K/5000K/5700K	IP20	80	ON-OFF / DALI	6025776
S674	UP 110° DOWN 110°	4000-4700lm	45W	90LM/W	3000K/4000K/5000K/5700K	IP20	80	ON-OFF / DALI	12125776
S675	UP 110° DOWN 110°	5100-5900lm	56W	90LM/W	3000K/4000K/5000K/5700K	IP20	80	ON-OFF / DALI	15125776

Show More Show Less

Additional information

CODE	S675
OPTIC	UP 110°, DOWN 110°
LUMENS	5100-5900lm
WATTAGE	56W
LUMENS/W	90LM/W
COLOR	BLACK / WHITE
IP RATING	IP20
CCT	3000K/4000K/5000K/5700K
CRI	80
CONTROL	ON-OFF / DALI
SIZE	15125776
